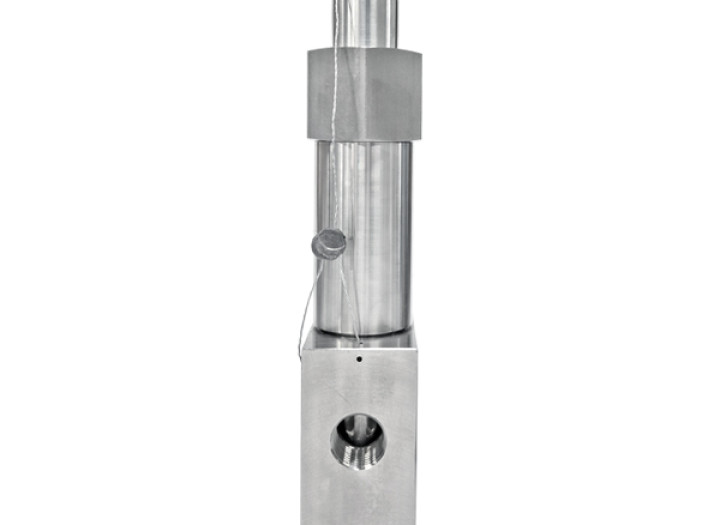

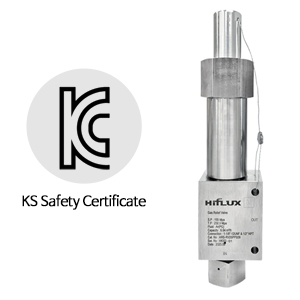

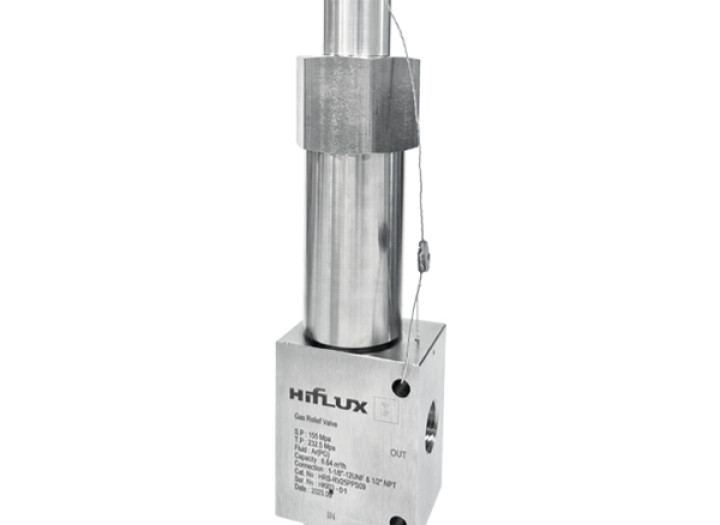

Safety Valve KC Certified Proportional Gas Relief Valve - 1,000psi ~ 18,000psi
| Product Name | KC Certified Proportional Gas Relief Valve - 1,000psi ~ 18,000psi |
|---|---|
| Features | Pressure range - 1,000psi ~ 18,000psi |
| Features | Inlet port - H6009 (9/16 inch) |
| Features | Outlet port - 1/2 inch NPT |
| Features | Atmosphere discharge type safety valve |
| Features | Set to customer's operating pressure before shipment |

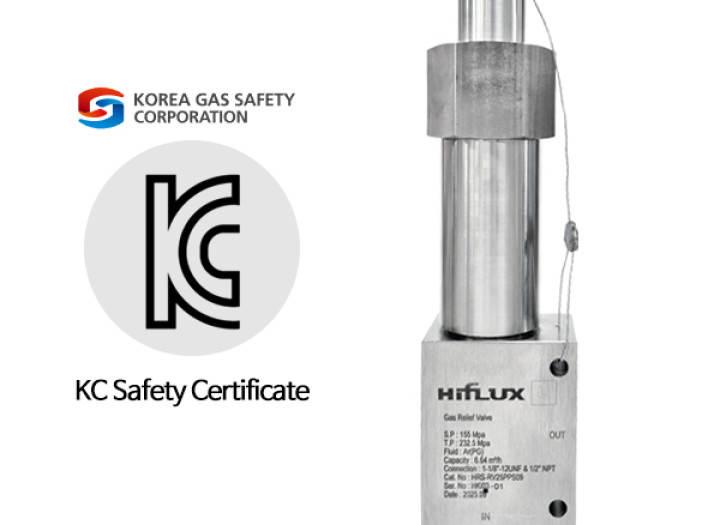

| Features | Acquired Korea Gas Safety Corporation KC Safety Certification |
List
- PREVIOUSKC Certified Proportional Gas Relief Valve - 1,000psi ~ 29,000psi
- NEXTPneumatic Actuator Ball Valve - PT Female (~15,000psi)
본문
Detail view
Relief ValveA safety valve that protects the system and other devices by discharging pressure when the internal pressure of the system rises above the set pressure.
|
| Proportional type is a progressively opened as the system pressure increase. It is useful in the system which the pressure increase rapdly or in the high flow system due to vent flow is increased as much as system pressure is increased. |
|
FeaturesWe will guide you through the product’s features and benefits.
|
 Pressure range : 1,000psi ~ 18,000psi Inlet port : H6009 (9/16 inch) Outlet port : 1/2 inch NPT Orifice size : ø 3 Setting Pressure tolerance : ± 3% Max operating temperature : -20℃ ~ 160℃ Atmosphere discharge type safety valve Connection to piping of various pressure specifications and sizes is possible using an Adapter Stable sealing is possible by using PEEK stem STEM Part Material : General Gas - STS630, Hydrogen Gas - STR660 Product testing follows Korea Gas Safety Corporation (KGS) AA319 Set to customer's operating pressure before shipment
|
|
StructureWe will guide you on the structure and material of the product.
|
|||||||||||||||||||||||||||||||||||||||||||||
|
|
SpecificationWe will guide you through the model name, specifications, and dimensions for each product.
|
|
As all sizes are for reference, they can be changed without any notification. Please contact us for details or send to online inquiry, we will give you respond as soon as possible. |
|
TECHNICAL FEATURES
|
||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||
|
WHERE
|
|
To protect the equipment form the over pressure. In the system which control the overpressure by heat expansion. When the low drain rates is not the problem point in high pressure. When the system requires “bubble tight’ sealing. |
|
WHERE NOT
|
|
To protect the equipment form the over pressure. In the system which control the overpressure by heat expansion. When the low drain rates is not the problem point in high pressure. When the system requires “bubble tight’ sealing. |
|
ApplicationCheck out the products applied in various fields.
|
|
High pressure fluid handling components for the chemical, petrol chemical, water-jet, research and oil and gas industries. As our products are divied into pressures of 5500~150000psi, body type and port size you can use them according to the specifications which you want to use. Our products generally are produced with stainless steel materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used. (STS316, HC-276, INC600, INC700, Ti, Ni 등) ※ Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, Inconel, Titanium, Nickel. |
 |
|
NumberingWe will guide you through product classification and ordering options.
|
||||||||||||||||||||||||||||||||||||||||
|
