Safety Valve
KC Certified Proportional Gas Relief Valve - 1,000psi ~ 29,000psi
| Product Name |
KC Certified Proportional Gas Relief Valve - 1,000psi ~ 29,000psi |
| Features |
Pressure range - 1,000psi ~ 29,000psi |
| Features |
Inlet port - H6009 (9/16 inch) |
| Features |
Outlet port - 1/2 inch NPT |
| Features |
Atmosphere discharge type safety valve |
| Features |
Set to customer's operating pressure before shipment |
| Features |
Acquired Korea Gas Safety Corporation KC Safety Certification |
Page 정보
Writer 하이플럭스
Comments 0
Check 3,901
Date Created 23-03-10 14:22
List
본문
Detail view

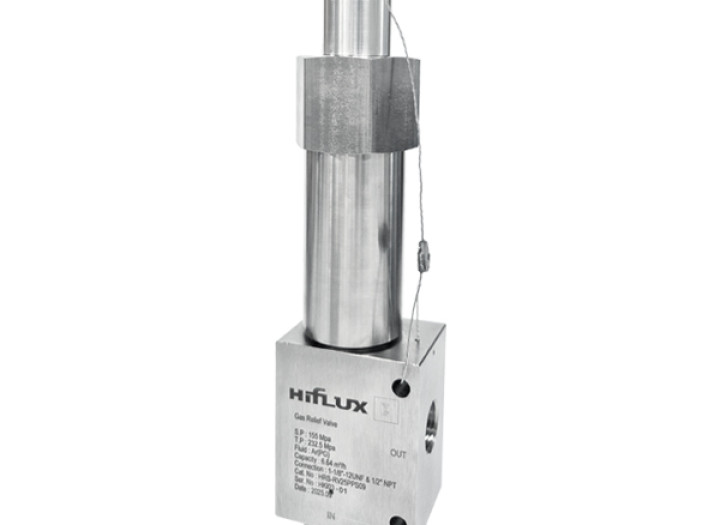

Relief ValveA safety valve that protects the system and other devices by discharging pressure when the internal pressure of the system rises above the set pressure.
-
-
- KC Certified Proportional Gas Relief Valve - 1,000psi ~ 29,000psi
- Atmosphere discharge type safety valve
- Connection to piping of various pressure specifications and sizes is possible using an Adapter
- Stable sealing is possible by using PEEK stem
- STEM part material: For general gas - STS630, For hydrogen gas - STR660
- Product testing follows Korea Gas Safety Corporation (KGS) AA319
- Set to customer's operating pressure before shipment
- Inlet port : H6009 (9/16 inch)
- Outlet port : 1/2 inch NPT
|
|
| Proportional type is a progressively opened as the system pressure increase. It is useful in the system which the pressure increase rapdly or in the high flow system due to vent flow is increased as much as system pressure is increased.
|
StructureWe will guide you on the structure and material of the product.
|
| No. |
DESCRIPTION |
MATERIAL |
| 1 |
BODY |
STS316 |
| 2 |
HOUSING |
STS304 |
| 3 |
SPRING GUIDE |
STS304 |
| 4 |
STEM |
General Gas - STS630, Hydrogen Gas - STR660 |
| 5 |
SEAT |
PEEK |
| 6 |
STEM GUIDE |
STS316 |
| 7 |
BOTTOM CONNECTOR |
STS316 |
| 8 |
CAP |
AL6061 |
| 9 |
COVER |
STS304 |
| 10 |
O-RING 1 |
VITON |
| 11 |
O-RING 2 |
VITON |
| 12 |
SPRING |
SAE9254 |
| 13 |
Set Screw |
STS304 |
| 14 |
NUT |
STS304 |
|
SpecificationWe will guide you through the model name, specifications, and dimensions for each product.
|
|
|
 As all sizes are for reference, they can be changed without any notification.
Please contact us for details or send to online inquiry, we will give you respond as soon as possible.
|
|
|
| Feature |
KCG-RV29PPS09 |
KCH-RV29PPS09 |
| Pressure Range (PSIG) |
1,000 ~ 29,000 |
| Inlet Port |
H6009 (9/16 inch) |
| Outlet Port |
1/2 inch NPT |
| Orifice Size |
ø 3 |
| Packing Material |
PEEK |
| O-ring Material |
Viton |
| Max working temperature |
-20℃ ~ 160℃ |
| Adjustment dimension tolerance range ±% |
±3% |
| Applicable Fields |
General Gas |
Hydrogen Gas |
|
|
|
To protect the equipment form the over pressure.
In the system which control the overpressure by heat expansion.
When the low drain rates is not the problem point in high pressure.
When the system requires “bubble tight’ sealing.
|
|
|
To protect the equipment form the over pressure.
In the system which control the overpressure by heat expansion.
When the low drain rates is not the problem point in high pressure.
When the system requires “bubble tight’ sealing.
|
ApplicationCheck out the products applied in various fields.
|
High pressure fluid handling components for the chemical, petrol chemical, water-jet, research and oil and gas industries.
As our products are divied into pressures of 5500~150000psi, body type and port size you can use them according to the specifications which you want to use.
Our products generally are produced with stainless steel materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
(STS316, HC-276, INC600, INC700, Ti, Ni 등) ※ Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, Inconel, Titanium, Nickel.
|
 |
