    Pump HIFLUX Small Air Diaphragm Pump

    Product Name HIFLUX Small Air Diaphragm Pump
    Features Ultra-Compact & Lightweight Design
    Features Excellent Flexibility & Versatility
    Features Non-Lubricated Air System Operation, Robust Materials
    Features Key Application Areas (Water treatment industry, Oil circulation systems)
    Features Inlet port - PT 1/4 inch
    Features Outlet port - PT 1/4 inch

    List

    본문

    Detail view
    Small Air Diaphragm PumpA compact solution that uses the reciprocating motion of a diaphragm to draw in or discharge liquids or gases

    • HIFLUX Small Air Diaphragm Pump
      • HIFLUX Small Air Diaphragm Pump
      • Inlet port : PT 1/4 inch
      • Outlet port : PT 1/4 inch
      • Air : PT 1/8 inch
      • Max Flow Rate : 6 L/min
      • Max Supply Air Pressure : 7bar
      • Max. Head : 7bar
      • Weight : 1kg
      • Operating Temperature : 5℃ ~ 65℃
      • Operating Pressure 2.5bar, 20℃, Outlet Open, Water Standard
    The HIFLUX Small Air Diaphragm Pump is a compact solution that uses the reciprocating motion of a diaphragm to draw in or discharge liquids or gases. It features self-priming capabilities, allowing it to pull up liquids on its own, and its small size makes it ideal for environments with limited installation space. The HIFLUX Small Air Diaphragm Pump offers an efficient and reliable fluid transfer solution across various industrial sectors, leveraging its strengths in compact size, versatility, safety, and low costs.
    FeaturesWe will guide you through the product’s features and benefits.
    1. Ultra-Compact & Lightweight Design
      ico_dot.gif Compact Size : Measuring just 74mm x 122mm x 60mm, its exceptionally small footprint is perfect for space-constrained installations.
      ico_dot.gif Lightweight : Weighing less than 1kg, it's easy to move and install.

    2. Excellent Flexibility & Versatility
      ico_dot.gif Dry Run Capability : This pump can operate dry without damage, ensuring no impact on process interruptions or production line halts.
      ico_dot.gif Self-Priming Function : Its self-priming ability.
      ico_dot.gif Diverse Installation Options : It offers various installation and application possibilities, including drum transfer pump functionality and splash-proof capabilities.

    3. Safety & Reliability
      ico_dot.gif Non-Lubricated Air System Operation : It operates with an air system that doesn't require separate lubrication, simplifying maintenance.
      ico_dot.gif Robust Materials : Constructed from PP+GF material for excellent chemical resistance. Diaphragm materials include PTFE and NBR, enhancing compatibility with various fluids.

    4. Key Application Areas
      ico_dot.gif Water treatment industry
      ico_dot.gif Graphic industry
      ico_dot.gif Chemical industry
      ico_dot.gif Oil circulation systems, etc.
    StructureWe will guide you through the structure of each product.

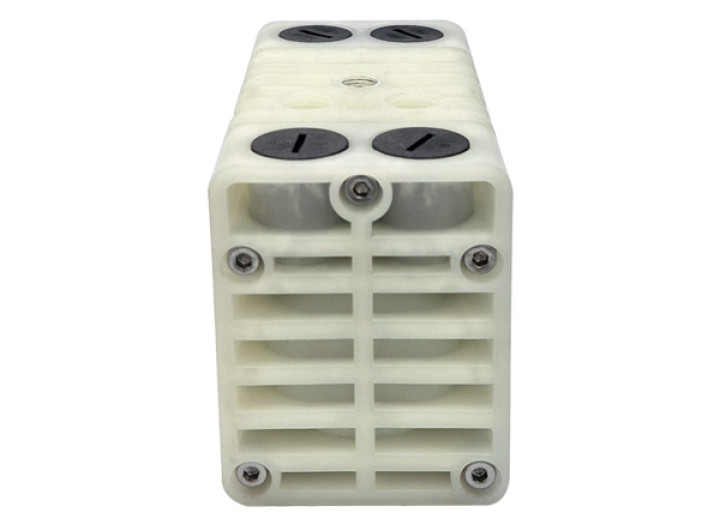

    HIFLUX Diaphragm Pump 1/2 Section
    [ Diaphragm Pump 1/2 Section ]

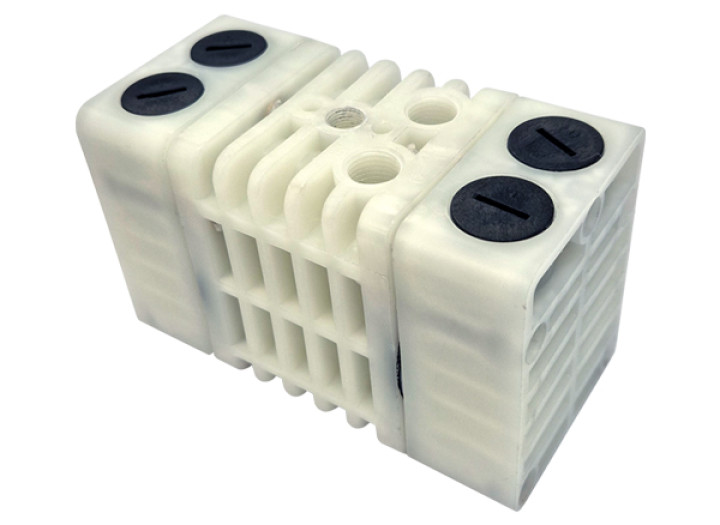

    HIFLUX Diaphragm Pump 1/3 Section
     [ Diaphragm Pump 1/3 Section ]

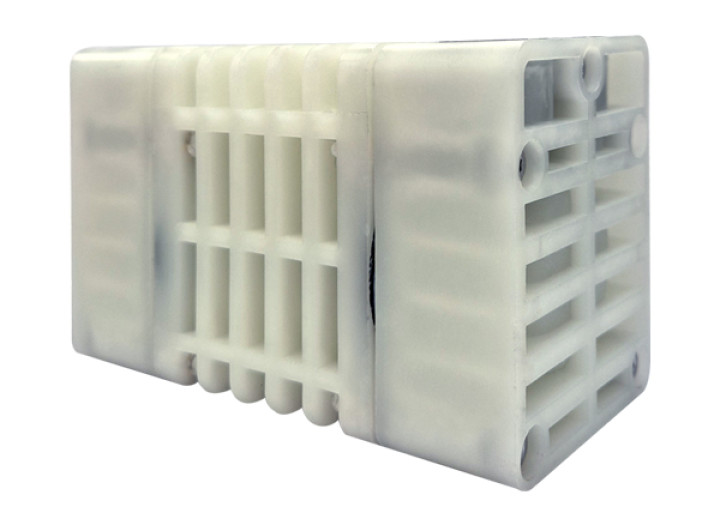

    HIFLUX Diaphragm Pump 1/3 Section
     [ Diaphragm Pump Mounting Hole ]



    No DESCRIPTION MATERIAL
    1 Body ​PP+GF
    2 Cover ​PP+GF
    3 Internal Diaphragm ​NBR
    4 External Diaphragm ​PTFE
    5 Diaphragm Nut ​STS 316
    6 Check Housing ​PA+GF
    7 Check Cover ​Peek
    8 Ball ​Ceramic
    9 Spring ​STS 304
    10 Seat ​PTFE
    SpecificationWe will guide you through the model name, specifications, and dimensions for each product.
    ico_dot.gif As all sizes are for reference, they can be changed without any notification.
    ico_dot.gif Please contact us for details or send to online inquiry, we will give you respond as soon as possible.
    AssemblyWe will guide you through the assembly process of diaphragm pump and fitting.
    ApplicationCheck out the products applied in various fields.
    ico_dot.gif High pressure fluid handling components for the chemical, petrol chemical, water-jet, research and oil and gas industries.
    ico_dot.gif As our products are divied into pressures of 5500~150000psi, body type and port size you can use them according to the specifications which you want to use.
    ico_dot.gif Our products generally are produced with stainless steel materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
       (STS316, HC-276, INC600, INC700, Ti, Ni 등) ※ Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, Inconel, Titanium, Nickel.

    Hiflux High-temperature and high-pressure products Chemical oil refining Water jet Oil gas industry Application to various research fields
