FeaturesWe will guide you through the product’s features and benefits.

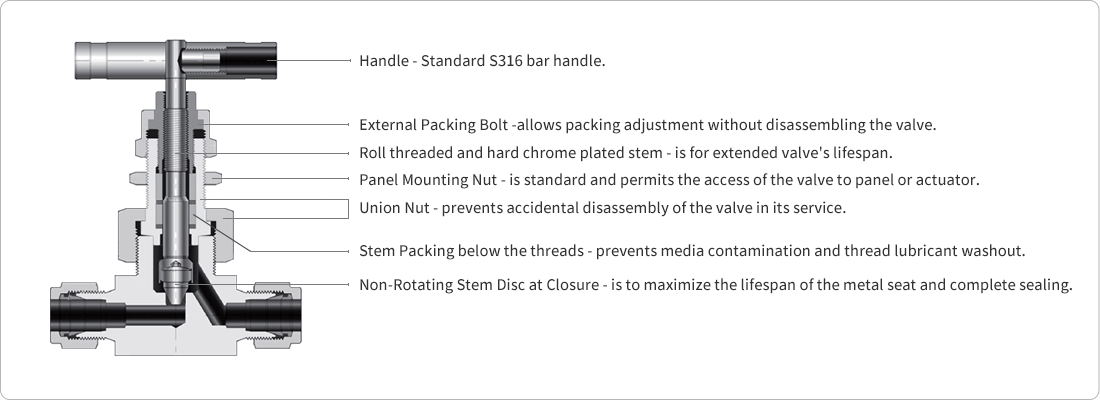

Pressure up to 6,000psi(413bar) @ 100°F(38°C)  High Temperatures up to ~ 1,200°F (~ 648℃)  Graphite packing used.  Standard 316 stainless steel  Standard non-rotation stem disc and stem packing below the threads design.  Valve stem back seating against the bevelled edge of bonnent in fully open position prevents maximum leakage through bonnet when packing fails.

SpecificationWe will guide you through the model name, specifications, and dimensions for each product.

View Product Specifications

As all sizes are for reference, they can be changed without any notification.  Please contact us for details or send to online inquiry, we will give you respond as soon as possible.

StructureWe will guide you through the structure of each product.

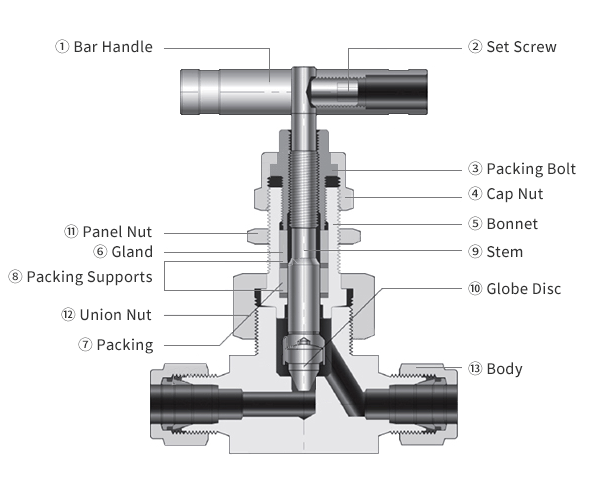

Item Component Material / ASTM Specification 1 Bar Handle SS316 2 Set screw Grade B8 TYPE 304/A193 3 Packing Bolt SS316 4 Cap nut SS316 5 Bonnet * SS316 6 Gland SS316 7 Packing * Graphite 8 Packing supports Reinfoced PTFE 9 Stem Hard Chrome-plated SS316 10 Globe disc TYPE630/A564 11 Panel nut SS316 12 Union nut SS316 13 Body * SS316

InformationWe will guide you through product details.

Technical Data

Valve Material Temperature Rating °F(°C) Pressure Rating @ -65°F to 100°F (-53°C to 38°C) SS316 -65°F ~ 100°F (-54℃ to 38℃) 6,000 psig (413 bar)

The pressure rating of valves with LOK end connections is determined by the tubing material and thickness.
The valve's pressure rating is sometimes limited by the operating pressure of the connected tubing and end connections.
Valves with standard Vee & Ball are designed for use in either fully open or fully closed positions.
All valves are factory-tested with nitrogen gas at 1000 psig (69 bar).
The maximum allowable seat leakage is 0.1 SCCM.

AssemblyWe will guide you through the assembly process of fitting and tube.

1. Fully insert the tube into the fitting and against the shoulder; rotate the nut finger-tight. 2. Mark the nut at the 6 o’clock position. 3. While holding the fitting body steady, tighten the nut one and one-quarter turns to the 9 o’clock position.

ApplicationCheck out the products applied in various fields.

FLUXLOK is brand for Lok fitting of HIFLUX Co., Ltd.  Suitable for chemical, oil refining, research, oil and gas companies, this product is used for various pressures.  Has not torque transition for tubing in installation.  Can be checked and inspected easily during the first installation.
