《How to use the table and order》 ① Choose the female which is suitable for the pressure and tube size. (vertical lines of the table). ② Choose the female after confirming the pressure to be connected and the tube size. (horizontal lines of the table) ③ Confirm the relevant catalog numbers and sizes.

(unit : mm)

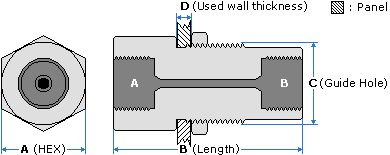

Pressure Rating 15,000 psi (Female 2) 15,000 psi (Female 1)   Catalog No. / Dimensions A B C D A B C D A B C D A B C D Tube Size (Port Type) 1/8" (H1502) 1/4" (H1504) 3/8" (H1506) 1/2" (H1008) 1/8" (H1502) A015F2/015F2-B 25.4 53.9 Ø16.9 13 1/4" (H1504) A015F4/015F4-B 25.4 53.9 Ø23.2 13 3/8" (H1506) A015F6/015F6-B 34.9 60.3 Ø23.2 13 1/2" (H1008) A010F8/015F8-B 38.1 60.3 Ø28 13
