• HIFLUX Gland
(unit : mm)
Catalog No. Pressure Rating (psi) Port Type Tube Size Dimensions
A (HEX) B
FA15GS02 15,000 H1502 1/8" 12 14.5
FA15GS04 15,000 H1504 1/4" 16 16
FA15GS06 15,000 H1506 3/8" 17 19
FA10GS08 10,000 H1008 1/2" 25.4 24
  • Gland
  • Sleeve
  • Plug

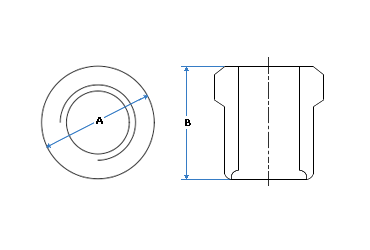

HIFLUX sleeve
(unit : mm)
Catalog No. Pressure Rating (psi) Port Type Tube Size
FA15SS02 15,000 H1502 1/8"
FA15SS04 15,000 H1504 1/4"
FA15SS06 15,000 H1506 3/8"
FA10SS08 10,000 H1008 1/2"
  • Gland
  • Sleeve
  • Plug
HIFLUX plug
(unit : mm)
Catalog No. Pressure Rating (psi) Port Type Tube Size
FA15PS02 15,000 H1502 1/8"
FA15PS04 15,000 H1504 1/4"
FA15PS06 15,000 H1506 3/8"
FA10PS08 10,000 H1008 1/2"
  • Gland
  • Sleeve
  • Plug
