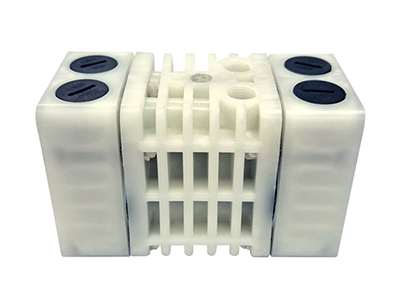

High Pressure Valves & Fittings. HIFLUX > en > Pressure/Tempe/Flow https://hiflux.net/bbs/board.php?bo_table=E_product7 테스트 버전 0.2 (2004-04-26) ko HIFLUX Small Air Diaphragm Pump https://hiflux.net/bbs/board.php?bo_table=E_product7&wr_id=5 Small Air Diaphragm PumpA compact solution that uses the reciprocating motion of a diaphragm to draw in or discharge liquids or gases

- HIFLUX Small Air Diaphragm Pump
- Inlet port : PT 1/4 inch
- Outlet port : PT 1/4 inch
- Air : PT 1/8 inch
- Max Flow Rate : 6 L/min
- Max Supply Air Pressure : 7bar
- Weight : 1kg
- Operating Temperature : 5℃ ~ 65℃
- Minimum Operating Pressure 3bar, 20℃, Outlet Open, Water Standard
Buy Now ↘

The HIFLUX Small Air Diaphragm Pump is a compact solution that uses the reciprocating motion of a diaphragm to draw in or discharge liquids or gases. It features self-priming capabilities, allowing it to pull up liquids on its own, and its small size makes it ideal for environments with limited installation space. The HIFLUX Small Air Diaphragm Pump offers an efficient and reliable fluid transfer solution across various industrial sectors, leveraging its strengths in compact size, versatility, safety, and low costs.

FeaturesWe will guide you through the product’s features and benefits.

1. Ultra-Compact & Lightweight Design

Compact Size : Measuring just 74mm x 122mm x 60mm, its exceptionally small footprint is perfect for space-constrained installations.

Lightweight : Weighing less than 1kg, it's easy to move and install.

2. Excellent Flexibility & Versatility

Dry Run Capability : This pump can operate dry without damage, ensuring no impact on process interruptions or production line halts.

Self-Priming Function : Its self-priming ability.

Diverse Installation Options : It offers various installation and application possibilities, including drum transfer pump functionality and splash-proof capabilities.

3. Safety & Reliability

Non-Lubricated Air System Operation : It operates with an air system that doesn't require separate lubrication, simplifying maintenance.

Robust Materials : Constructed from PP+GF material for excellent chemical resistance. Diaphragm materials include PTFE and NBR, enhancing compatibility with various fluids.

4. Key Application Areas

Water treatment industry

Graphic industry

Chemical industry

Oil circulation systems, etc.

StructureWe will guide you through the structure of each product.

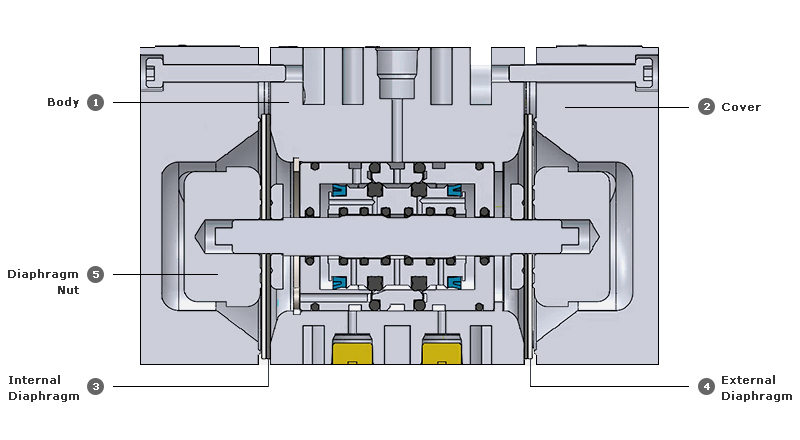

[ Diaphragm Pump 1/2 Section ]
HIFLUX Diaphragm Pump 1/3 Section

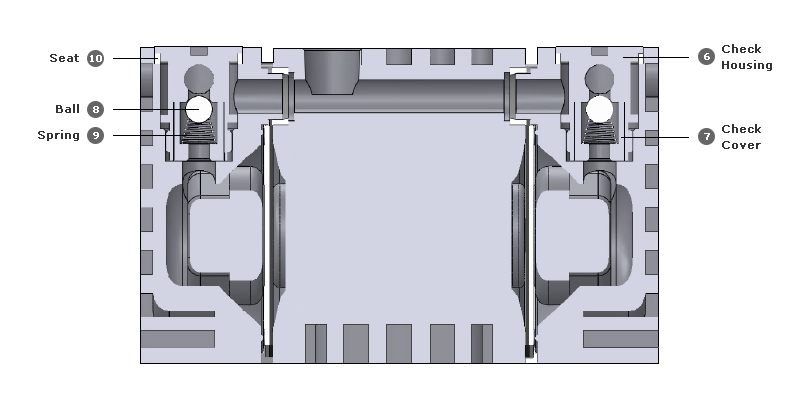

[ Diaphragm Pump 1/3 Section ]
HIFLUX Diaphragm Pump 1/3 Section

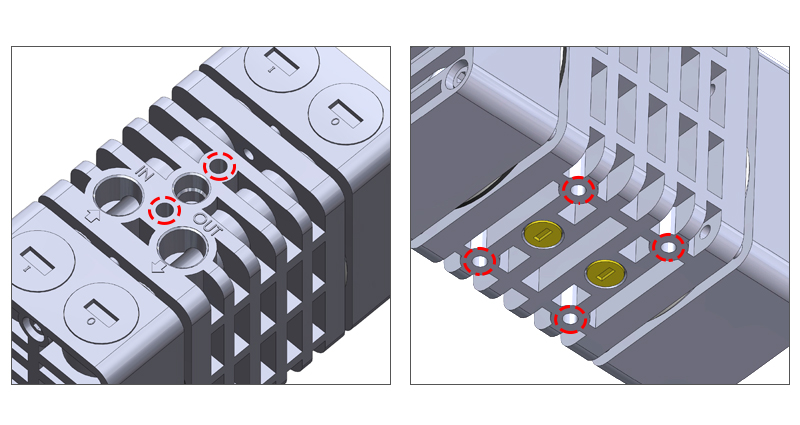

[ Diaphragm Pump Mounting Hole ]

No	DESCRIPTION	MATERIAL
1	Body	PP+GF
2	Cover	PP+GF
3	Internal Diaphragm	NBR
4	External Diaphragm	PTFE
5	Diaphragm Nut	STS 316
6	Check Housing	PA+GF
7	Check Cover	Peek
8	Ball	Ceramic
9	Spring	STS 304
10	Seat	PTFE

SpecificationWe will guide you through the model name, specifications, and dimensions for each product.

View Product Specifications

As all sizes are for reference, they can be changed without any notification.

Please contact us for details or send to online inquiry, we will give you respond as soon as possible.

AssemblyWe will guide you through the assembly process of diaphragm pump and fitting.

ApplicationCheck out the products applied in various fields.

High pressure fluid handling components for the chemical, petrol chemical, water-jet, research and oil and gas industries.

As our products are divied into pressures of 5500~150000psi, body type and port size you can use them according to the specifications which you want to use.

Our products generally are produced with stainless steel materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used.
(STS316, HC-276, INC600, INC700, Ti, Ni 등) ※ Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, Inconel, Titanium, Nickel.

Hiflux High-temperature and high-pressure products Chemical oil refining Water jet Oil gas industry Application to various research fields

]]> HIFLUX Fri, 10 Mar 2023 14:22:23 +0900 Thermorcouple Temperature Sensor https://hiflux.net/bbs/board.php?bo_table=E_product7&wr_id=4 ThermorcoupleTightened on high pressure fitting, sensor part in contact with fluid to measure temperature

View Catalog PDF ↘View SlideShare ↘

- Thermorcouple
- Max Pressure : 60,000psi
- Tube Size : H6004 (60,000 psi - 1/4")
- Sensor Size : Ø1, Ø1.6
- Sensor Length : 150mm
- Sensor Type : K Type
- Connecting directly to the port without additional parts
- Lead Wire : 1m (1m or more requires separate inquiry)
- Measurement Temperature Range : -100℃ ~ 500℃
- Meterial : STS316, STS630
- Minimum Assembly Torque : 700 kgf·cm
Buy Now ↘

HIFLUX Thermocouples measure the temperature in a high pressure environment. The sensor part comes in contact with the fluid to measure the temperature. Connecting the thermocouples directly to the port of the fitting allows the measurement of the temperature.

FeaturesWe will guide you through the product’s features and benefits.

Max Pressure : 60,000psi

Tube Size : H6004 (60,000 psi - 1/4")

Sensor Size : Ø1, Ø1.6

Sensor Length : 150mm

Sensor Type : K Type

Lead Wire : 1m (1m or more requires separate inquiry)

Connecting directly to the port without additional parts

Measurement Temperature Range : -100℃ ~ 500℃

Meterial : STS316, STS630

Thread : 9/16” 18 UNF (Con-thread)

Minimum Assembly Torque : 700 kgf·cm

StructureWe will guide you through the structure of each product.

ApplicationCheck out the products applied in various fields.

High pressure fluid handling components for the chemical, petrol chemical, water-jet, research and oil and gas industries.

As our products are divied into pressures of 5500~150000psi, body type and port size you can use them according to the specifications which you want to use.

Our products generally are produced with stainless steel materials, but they can be manufactured with other materials on demand so that various fluids and gases can be used
Please inquire with us about special materials apart from the above-mentioned materials, such as STS316, HC-276, Inconel, Titanium, Nickel.

High-temperature and high-pressure products Chemical oil refining Water jet Oil gas industry Application to various research fields

]]> HIFLUX Thu, 13 Apr 2023 16:19:02 +0900 Pressure Gauge - GAS TYPE https://hiflux.net/bbs/board.php?bo_table=E_product7&wr_id=3 Pressure Gauge - GAS TYPEPrecise measurement and versatile pressure gauge

View Catalog PDF ↘View SlideShare ↘

- Pressure Gauge - GAS TYPE
- C Type Series : HI50POT-20, HI50POT-70, HI50POT-150, HI50POT-250
- Easy to install and assemble.
- High corrosion resistance for environment.
- Stainless steel material.
- Possible to vibration suppression with using glycerin
- Suitable to use under the high mechanical vibration environment.
- Better performance and high durability.
Buy Now ↘

Pressure gauge of HIFLUX is general type which is being used many industries such as pump, hydraulic press and various pressure equipments. It has high corrosion resistance with staninless steel and can be used under vibration environment.

FeaturesWe will guide you through the product’s features and benefits.

- lightweight type Series : HI50POT-20, HI50POT-70, HI50POT-150, HI50POT-250

Easy to install and assemble.

High corrosion resistance for environment.

Stainless steel material.

Suitable to use under the high mechanical vibration environment.

Possible to vibration suppression with using glycerin

Better performance and high durability.

SpecificationWe will guide you through the model name, specifications, and dimensions for each product.

View Product Specifications

As all sizes are for reference, they can be changed without any notification.

Please contact us for details or send to online inquiry, we will give you respond as soon as possible.

For the most effective fitting, it is recommended to use Fitting Accessory and Tubing of HIFLUX.

InformationPressure terms/Standard pressure gauge information is provided.

ApplicationCheck out the products applied in various fields.

High pressure fluid handling components for the chemical, petrol chemical, water-jet, research and oil and gas industries.

As our products are divied into pressures of 5500~150000psi, body type and port size you can use them according to the specifications which you want to use.

NumberingWe will guide you through product classification and ordering options.

HI①
60②
A③
4c
-
150④

① Product Value

HI : Pressure Gauge
② Size

50 : 50mm

60 : 60mm

100 : 100mm
③ Type of Components

A, P : Bottom Connection, Direct

J : Back Connection, Flush

④ Pressure
20 : 20kgf/㎠
35 : 35kgf/㎠
50 : 50kgf/㎠
70 : 70kgf/㎠
100 : 100kgf/㎠
150 : 150kgf/㎠
250 : 250kgf/㎠
500 : 500kgf/㎠
1000 : 1000kgf/㎠

]]> HIFLUX Thu, 13 Apr 2023 16:19:02 +0900 Pressure Gauge - Bottom connection, Flush https://hiflux.net/bbs/board.php?bo_table=E_product7&wr_id=2 Pressure Gauge - Bottom connection, FlushPrecise measurement and versatile pressure gauge

View Catalog PDF ↘View SlideShare ↘

- Pressure Gauge - Bottom connection, Flush
- J Type Series : HI60J4c-35, HI100J3d-100, HI100J3d-250, HI100J3d-500, HI100J3d-1000
- Easy to install and assemble.
- High corrosion resistance for environment.
- Stainless steel material.
- Possible to vibration suppression with using glycerin
- Suitable to use under the high mechanical vibration environment.
- Better performance and high durability.
Buy Now ↘

FeaturesWe will guide you through the product’s features and benefits.

- Bottom connection, Flush Series : HI60J4c-35, HI100J3d-100, HI100J3d-250, HI100J3d-500, HI100J3d-1000
